Product Dimensions 36.75"h x 47.88"w x 29.13"d

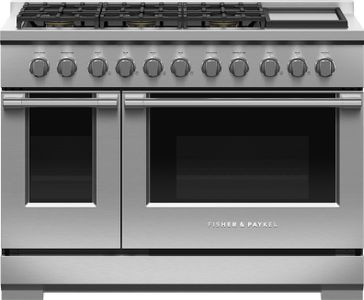

With Professional styling, this large range has six burners delivering powerful high heat, a griddle and two gas ovens. Featuring a generous total capacity of 7.7 cu ft, with enough room to fit a 32 lb turkey. The griddle plate allows you to cook several foods at once.Read More
Additional Savings Available
Please contact our store for more details and availability timelines.
View Options
5 Year Parts & Labor Warranty - 50% store credit if unused
$599.99
View Options
Griddle with burners that deliver up to 23,500 BTU heat per burner, for seriously fast boiling
Expansive 7.7 cu ft total oven capacity across two oven cavities
Non-tip full-extension shelves in main cavity for safe removal of hot dishes
Made from quality materials and real stainless steel
Sealed Dual Flow Burners™ deliver cooktop power up to 23,500 BTU for seriously fast boiling right down to a precise 140°F full surface simmer with the gentlest of flames.
The cooktop is designed for easy access to any burner with grates you can smoothly slide pots across. The oven is large enough to hold full size baking sheets.
This range has craftsmanship in every detail, with real stainless steel, cast-iron trivets, and titanium coated dials. Each cavity features incandescent lights and full extension telescopic racks. From the robust legs to the powerful legs to the powerful cooktop, the Range is built to last.
Precise control across high and low settings is delivered through the halo-illuminated cooktop dials.
Cleaning up spills is effortless with the continuous, porcelain base pan. Your cooktop simply needs a quick wipe to keep it looking good as new.
General Specs | |
Color | Stainless Steel |
Handle Color | Stainless Steel |
Cooktop Features | Continuous Grate, Griddle Included |
Cooktop Surface Style | Grate |
Door Panel Type | Glass |
Appliance Fit Width (in.) | 48 |
Manufacturer Warranty | 2 Years Limited |
Grate Material | Cast Iron |
Total Capacity (cu. ft.) | 7.7 |
Color Finish Name | Stainless Steel |
Collection | Series 7 |
ADA Compliant | Yes |
Range Type | Pro-Style |
Number of Elements/Burners | 6 |
Burner Type | Sealed |
Convection Cooking | Yes |
Griddle Included | Yes |
Voltage | 120 |
Frequency | 60 |
Amp | 15 |
Fuel Type | Natural Gas |
Number of Oven(s) | Double |
Depth (in.) | 29.13 |
Height (in.) | 36.75 |
Width (in.) | 47.88 |
Oven Cleaning Method | Manual Clean |
Dimensions | |
Height | 35 3/4" - 36 3/4" |
Width | 47 7/8" |
Depth | 29 1/8" |
Accessories | |
Square handle option | AH-R48 |
Burning Ratings | |
Maximum burner power | 23500 BTU |
Power back center | 18500BTU |
Power back left | 18500BTU |
Power back right | 18500BTU |
Power front center | 18500BTU |
Power front left | 23500BTU |
Power front right | 18500BTU |
Power griddle | 16500BTU |
Total cooktop power | 132500 BTU |
Capacity | |
Shelf positions | 5 |
Cleaning | |
Easy clean porcelain basepan | Yes |
Controls | |
Metal illuminated dials | Yes |
Gas Requirements | |
Fitting and pipe | ½ NPT, min. ⅝" ∅ flex line |
Supply Pressure (natural gas) | 6" to 9" W.C |
Oven Features | |
Broil pan | Yes |
Electronic oven control | Yes |
Full extension telescopic sliding shelves | Yes |
Internal light | Yes |
Infrared Broiler | Yes |
Oven Functions | |
Bake | Yes |
Broil | Yes |
Convection bake | Yes |
Number of functions | 15 |
Slow cook | Yes |
Power Requirements | |
Rated current | 15A |
Supply frequency | 60Hz |
Supply voltage | 120V |
Rangetop Features | |
Sealed range top | Yes |
Vent trim included | Yes |
Recommended Back Guards Ventilation | |
Combustible situation | BGRV3-3048H |
Non combustible situation | BGRV2-3048 / BGRV2-1248 |
Recommended hood | HCB48-12_N (48" Professional Range Hood, Dual Blower) |
Safety | |
ADA compliant | Yes |
Secondary Oven Features | |
3/4 Extension racks | 2 |
Electronic oven control | Yes |
Internal light | Yes |
Secondary Oven Functions | |
Bake | Yes |
Convection bake | Yes |
Number of secondary oven functions | 4 |
Proof | Yes |
Slow cook | Yes |
Warranty | |
Parts and labor | Limited 2 years |
Oven Performance | |
Bake power | 19700BTU |
Broil | 18500 BTU |
Secondary oven - Bake power | 18000BTU |
